Description

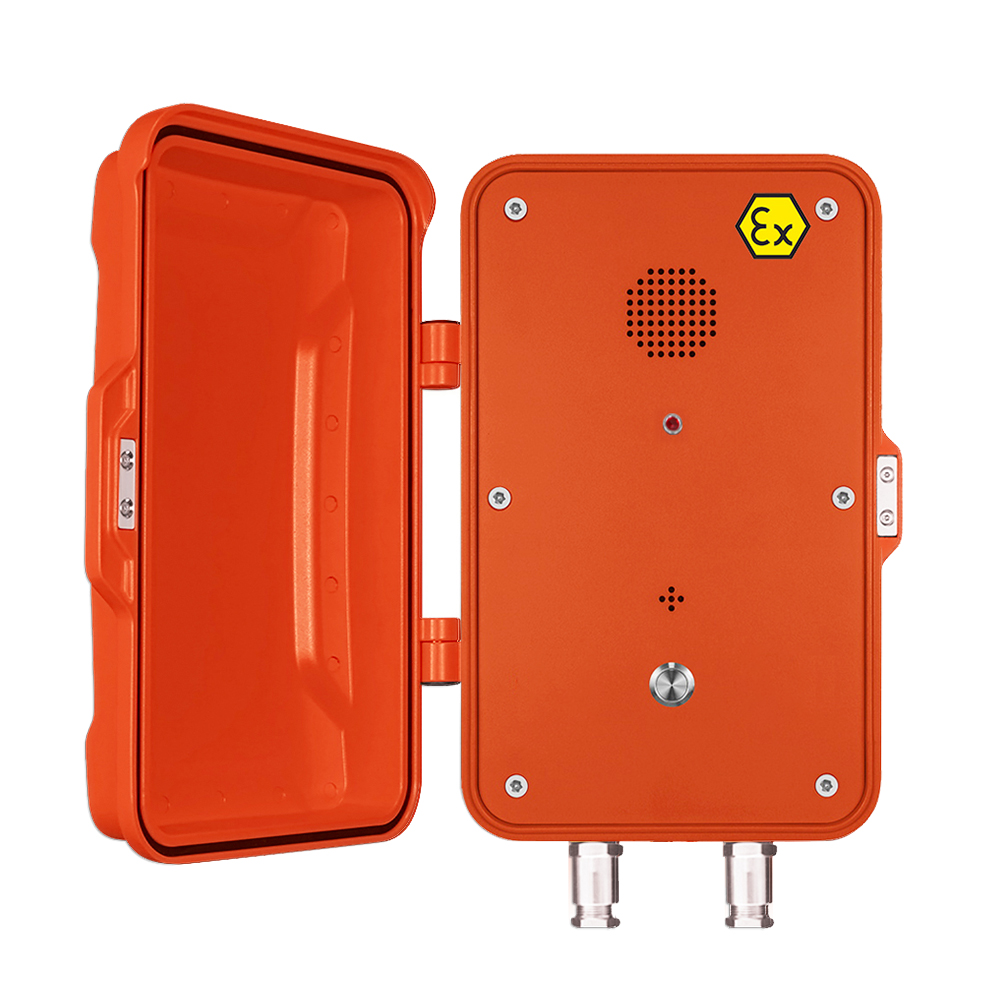

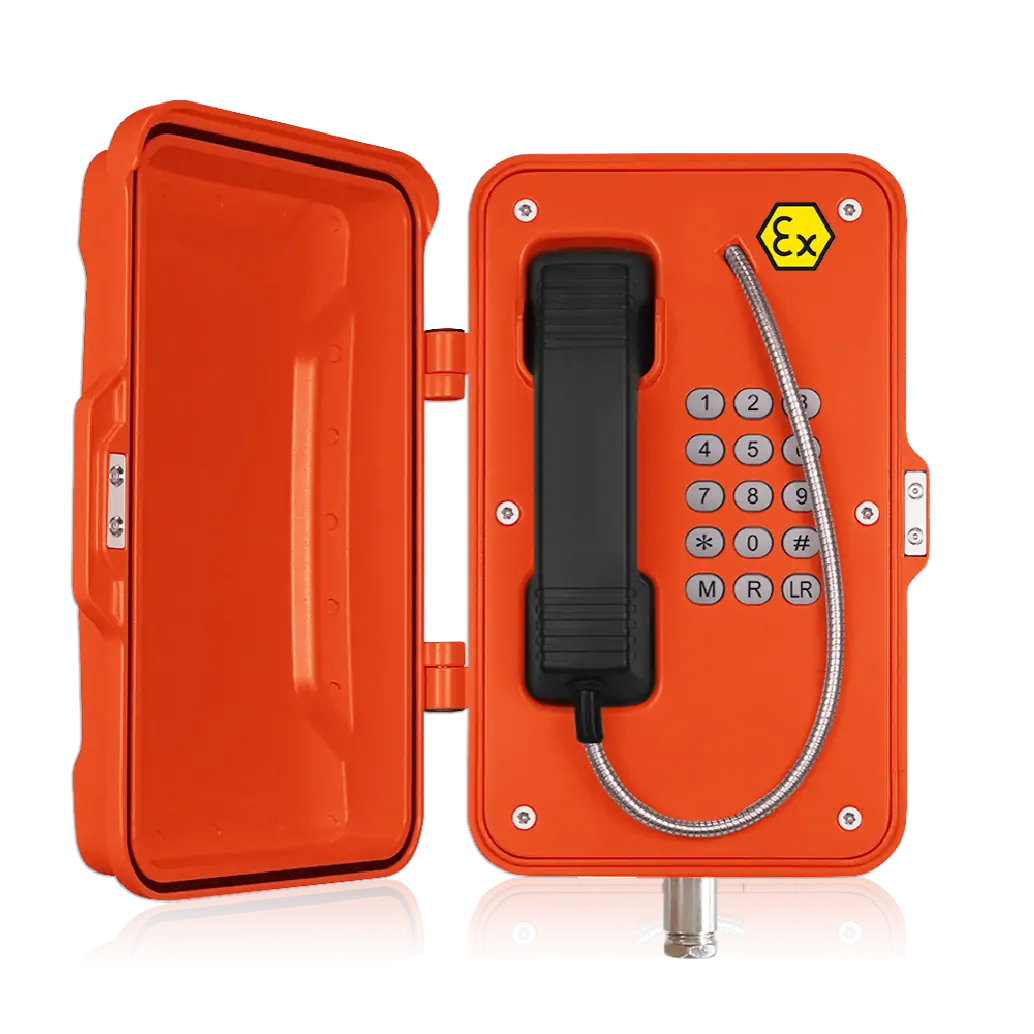

The JREX106-AL is an analogue explosion-proof telephone designed for communication in hazardous industrial environments, including mining, oil and gas, and chemical processing. Its durable fibreglass enclosure resists impacts, acids, alkalis and lubricants, while its noise-cancelling handset helps improve call clarity in noisy areas.
TECHNICAL SPECIFICATIONS
Power Supply: Telephone line powered
Operating Voltage: 24–65 V DC
Operating Current: 20–100 mA DC
Ringing Volume: 80 dB(A) at 1 metre
Dialling: Pulse or DTMF
Compatibility: Standard analogue PABX systems
Programming: Via keypad or remotely using DTMF tones
Call Features
• Last number redial, flash recall, mute and volume adjustment
• Call transfer
• Programmable automatic hang-up timer
• Automatic dialling with a configurable delay after lifting the handset
Physical Specifications
Display: Backlit LCD, 128 × 64 pixels
Dimensions: 303 × 240 × 129 mm
Weight: 8 kg
Cable Entries: 2 × M20 cable gland entries
Colours: Black, orange or yellow
Mounting: Wall-mounted with mounting bar
Hazardous-Area Ratings
Gas: Ex eb ib [ib Gb] mb IIC T6/T5 Gb
Dust: Ex ib [ib Db] tb IIIC T80°C/T95°C Db
Ambient Temperature: −40°C to +40°C for T6/T80°C; −40°C to +55°C for T5/T95°C
Optional Accessories
Explosion-proof beacon, horn, junction box and acoustic hood.
