Organise and Protect Your Fiber Connections
RJ Connect’s RJSB range provides compact DIN-rail splice boxes and 19″ rack patch panels
for fiber termination, splicing and connection management.
M1 Din Boxes
Descriptions
Industrial Din-rail Mount Fiber Splice Box are designed for either to support termination or
fusion splicing of the fibers. The Din-rail Splice unit can be loaded with a variety
of adapters like ST, SC and LC. This Din-rail Splice Boxhas compact and ruggedly designed,
made of aluminum (powder coated), and contains a clip for DIN RAIL mounting.
Features
1.Cold-roll steel, electrostatic painting
2.Suitable for different adapters: FC, SC, ST, LC
3.2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports
4.Splicing module of 12 fibers inside
Availeble Configurations
SC Connectors

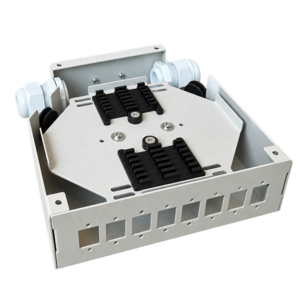

RJSB-M1-8xSC-MM
Grey DIN splice box with 8 SC duplex connectors for multimode fibre.
RJSB-M1-8xSC-SM
Grey DIN splice box with 8 SC duplex connectors for singlemode fibre.
M2 Din Boxes
Description
The M2 DIN-rail fibre splice box provides a compact metal housing for fibre splicing and connection management. It supports SC, LC and ST adapters through interchangeable front plates and includes an aluminium DIN-rail mounting clip. Top and bottom cable entries are prepared for M20 cable glands.
Features
1.Compact metal housing, measuring 61 × 115 × 113 mm.
2.Suitable for SC, LC and ST adapters, depending on the front plate.
3.Top and bottom M20 cable entries.
4.Internal splice cassette with a holder for 12 crimp splices.
Availeble Configurations
ST Connectors

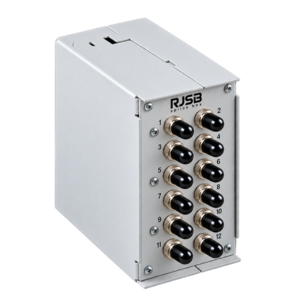

RJSB-M2-6xST-MM
Grey DIN splice box with 6 ST duplex connectors for multimode fibre.
RJSB-M2-6xST-SM
Grey DIN splice box with 6 ST duplex connectors for singlemode fibre.
RJSB-M2-12xST-SM
Grey DIN splice box with 12 ST duplex connectors for singlemode fibre.
SC Connectors

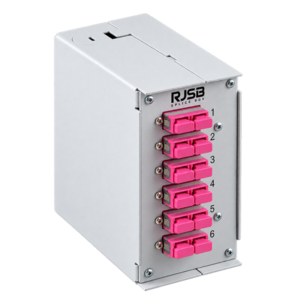

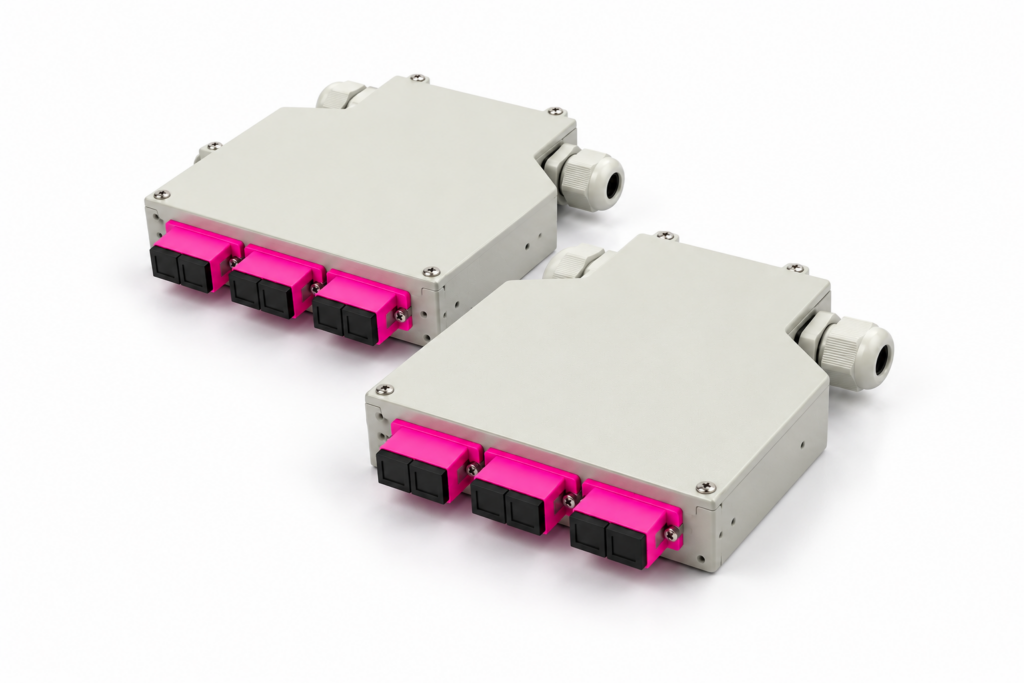

RJSB-M2-6xSC-MM
Grey DIN splice box with 6 SC duplex connectors for multimode fibre.
RJSB-M2-6xSC-SM
Grey DIN splice box with 6 SC duplex connectors for singlemode fibre.
LC Connectors

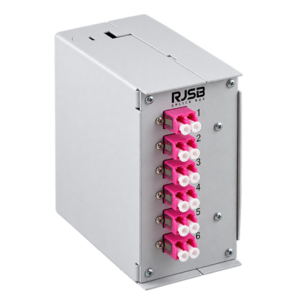

RJSB-M2-6xLC-MM
Grey DIN splice box with 6 LC duplex connectors for multimode fibre.
RJSB-M2-6xLC-SM
Grey DIN splice box with 6 LC duplex connectors for singlemode fibre.
19 Inch Panel
Descriptions
The RJSB fibre patch panel features a sliding design for installation in standard 19″ racks. Its compact 1U housing supports interchangeable faceplates and a variety of adapters, including SC, ST and LC. The sliding mechanism provides access for installation and maintenance without disturbing existing cables.
Features
1.Powder-coated housing with a compact 1U rack height.
2.Suitable for SC, FC, ST, LC and E2000 adapters.
3.Two 20 mm and two 25 mm cable entries.
4.Recessed adapters, individually labelled ports and a 45° open working angle.
Availeble Configurations
ST Connectors

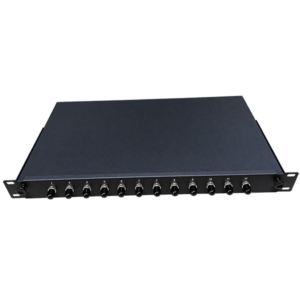

RJSB-19-12-ST-SM
19″ rack patch panel with 12 ST connectors for singlemode fibre.
SC Connectors
RJSB-19-12-SC-SM

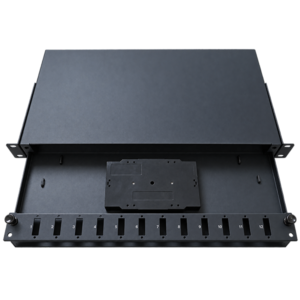

19″ rack patch panel with 12 SC duplex connectors for singlemode fibre.
RJSB-19-24-SC-SM
19″ rack patch panel with 24 SC duplex connectors for singlemode fibre.
LC Connectors

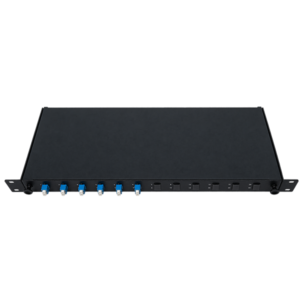

RJSB-19-12-LC-MM
19″ rack patch panel with 12 LC duplex connectors for multimode fibre.
