Description

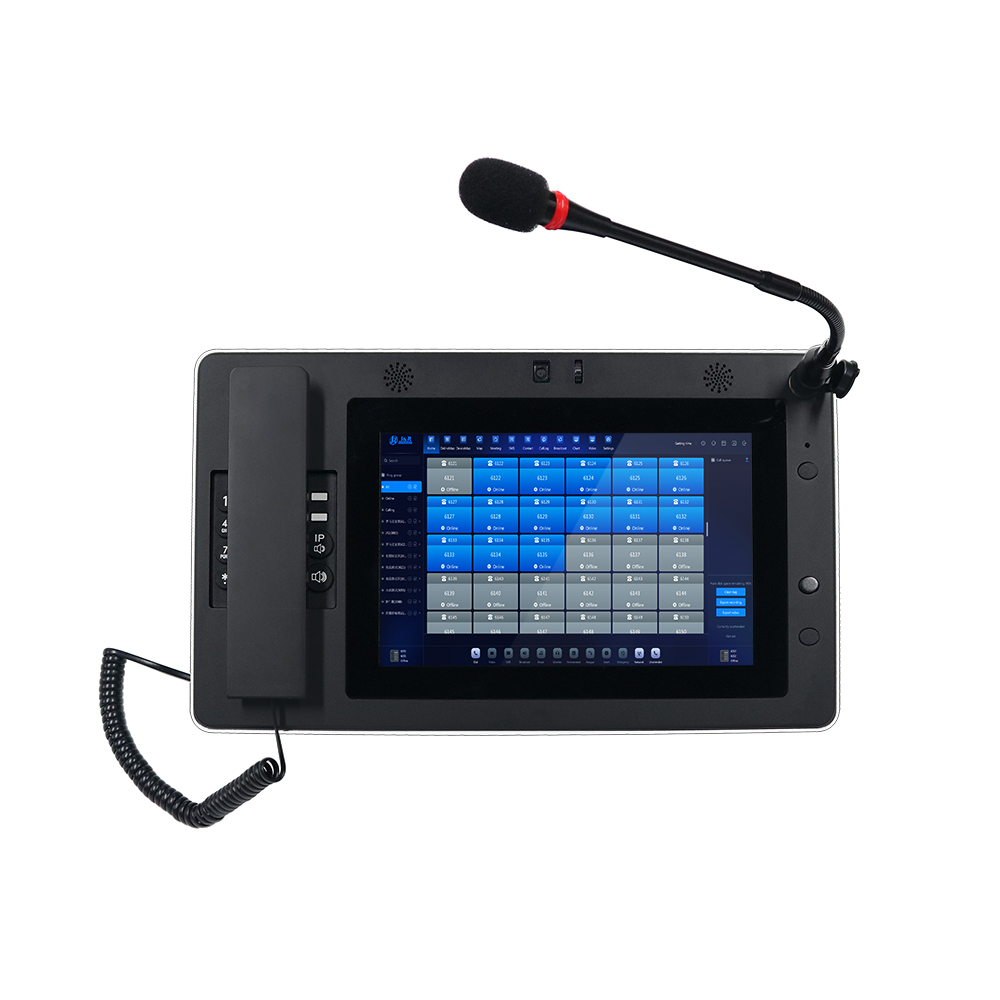

The JR-DS-02 Dispatching Console combines a touchscreen, telephone handset and gooseneck microphone in one unit for dispatching communications. Its aluminium panel construction and flexible mounting options allow installation on a desk, within a panel or on a wall.
Technical Specifications
System Parameters
Processor: Intel Core i3/i5/i7
Memory: 4 GB DDR3
Storage: 128 GB SSD or larger
Touchscreen and Display
Screen: 10.1-inch capacitive touchscreen
Resolution: 1280 × 800 pixels
Brightness: 300 cd/m²
Interfaces
Network: 1 × RJ-45 Ethernet port, 10/100/1000 Mbps
USB: 2 × USB 2.0 and 2 × USB 3.0
Serial: 1 × RS-232
Audio: Integrated HD Audio
Physical Specifications
Power Input: 12 V DC
Dimensions: 379 × 224 × 48.5 mm
Weight: Approximately 2 kg
Construction: Aluminium panel
Installation: Desktop, flush-mounted or wall-mounted
Operating Environment
Operating Temperature: −20°C to +50°C
Humidity: 5–95%, non-condensing
