Description

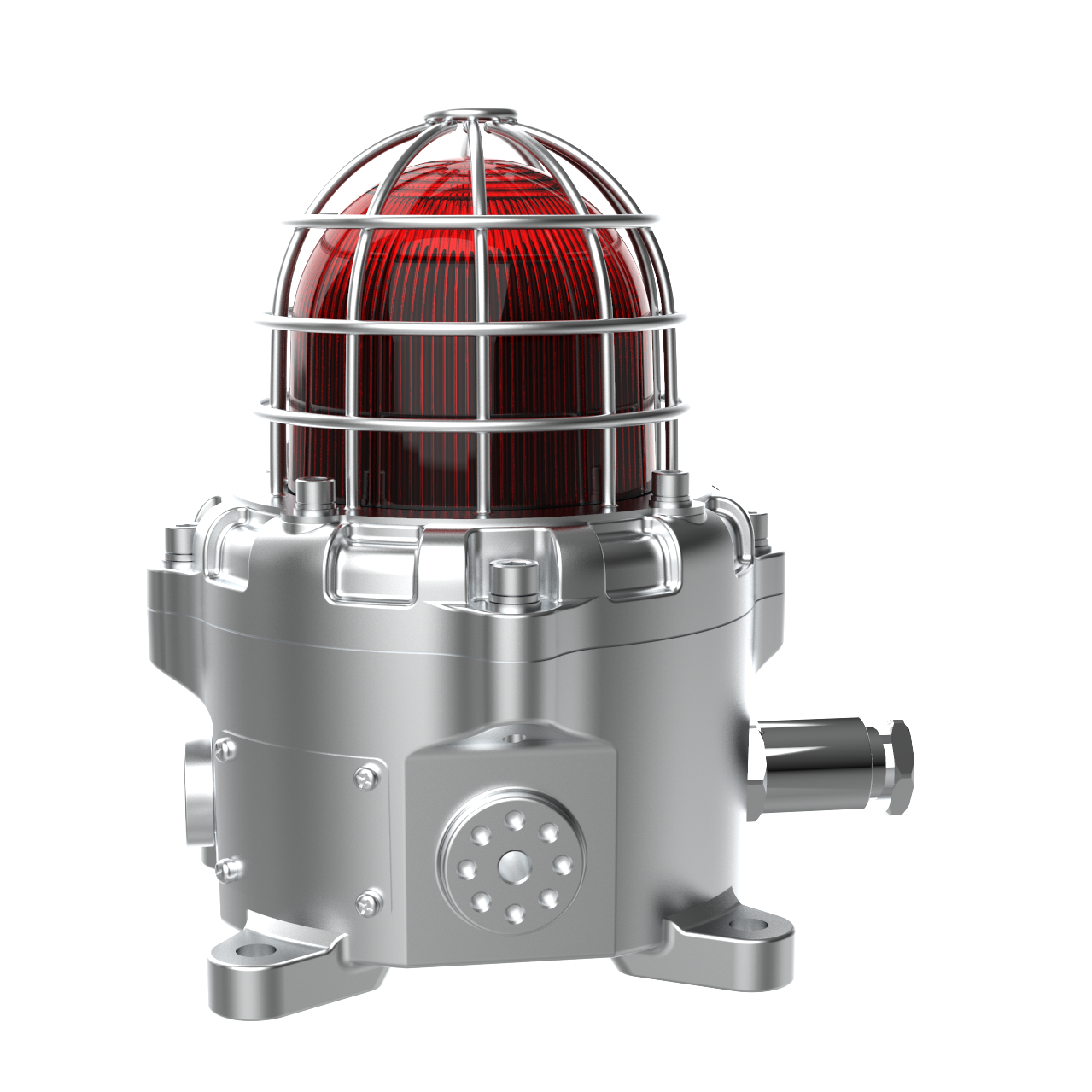

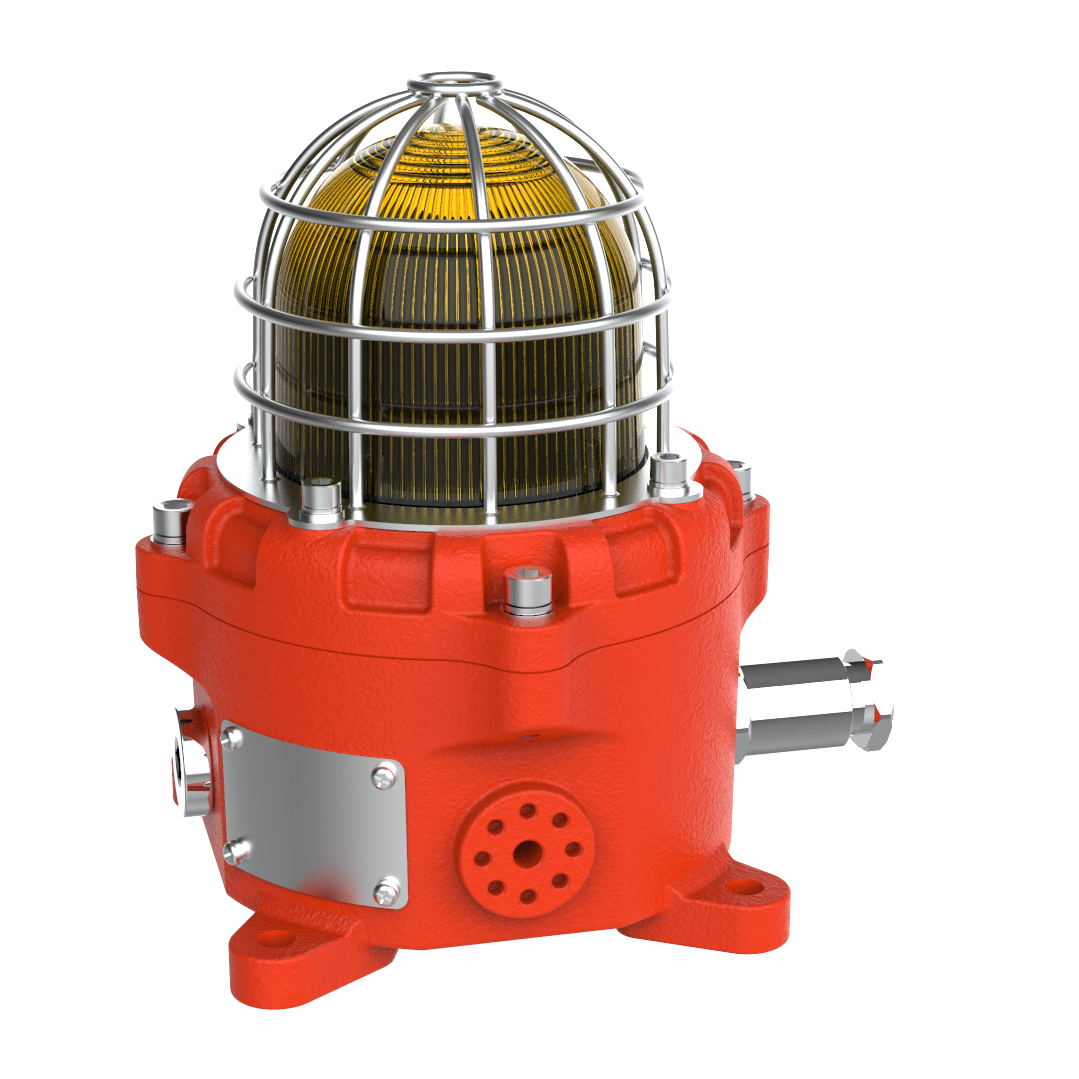

The JREX-WL Explosion-proof Beacon provides visual warnings in hazardous industrial environments. It can be used with explosion-proof telephone systems, gas detection systems and safety alarms, or as a standalone warning light. Its durable housing makes it suitable for oil and gas facilities, refineries, chemical plants, power stations and marine installations.
TECHNICAL SPECIFICATIONS
Operating Voltage: 12 V DC
Power Consumption: 10 W
Warning Type: Visual beacon
Protection Rating: IP66
Light Features
Light Source Options: LED rotating reflector, LED flashing/strobe or xenon strobe
Rotation Speed: 120–140 RPM
LED Power Options: 5 W or 10 W
Xenon Flash Energy Options: 5, 10, 15 or 20 J
Flash Patterns: 1 Hz, 1.5 Hz, 2 Hz, double flash or triple flash
Steady Light Modes: High or low power
LED Service Life: At least 60,000 hours
Physical Specifications
Housing: Aluminium alloy or SUS304 stainless steel
Lamp Cover: ABS
Dimensions: 149 × 149 × 188.35 mm
Maintenance: Replaceable lamp head and on-site parameter configuration
Operating Environment
Operating Temperature: −30°C to +70°C
Humidity: 10–95% RH, non-condensing
Explosion-Proof Rating
Ex d ib IIC T6 Gb / Ex tD A21 IP66 T80°C
