Description

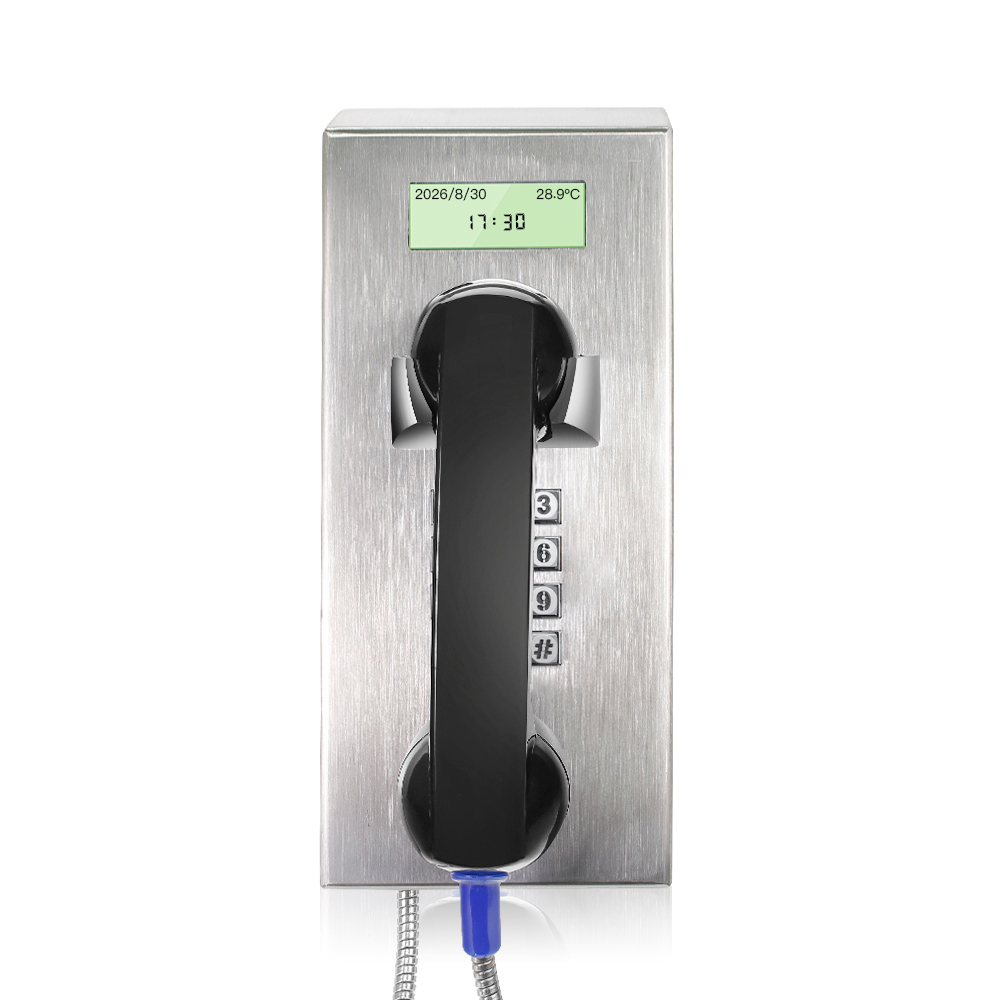

The JR212-FK-SIP is a vandal-resistant SIP handset telephone designed for public spaces and demanding environments. Its corrosion-resistant housing, metal keypad and armoured cord provide durability, while the noise-cancelling microphone helps deliver clear calls. It is suitable for applications such as transport terminals, hospitals, prisons and shopping centres.
TECHNICAL SPECIFICATIONS
Power Supply: PoE (IEEE 802.3af) or 12 V DC
Power Consumption: Idle: 1 W / Active: 2.4 W
SIP Protocol: SIP 2.0 (RFC3261)
WAN Port: 10/100Base-T RJ-45 for network connection, Auto MDIX
LAN Port: 10/100Base-T RJ-45 for PC connection, Auto MDIX
Ringing Volume: 90–95 dB(A) at 1 metre
Compatibility: Most SIP-based IP-PBX servers supporting RFC3261
Voice and Call Features
• Full-duplex communication
• Codecs: G.711 A/u, G.722, G.723 and G.729
• G.168 echo cancellation
• Automatic dialling with configurable delay and four sequential calling groups
• Automatic switching between primary and backup servers
• DTMF: SIP INFO, in-band and RFC2833
• Two relays for remote control of external devices
Network Features
• WAN/LAN bridge mode
• Static IP, DHCP and VLAN support
• Web-based configuration, diagnostics and firmware updates
• Remotely adjustable earpiece volume and microphone sensitivity
Physical Specifications
Display: LCD, 128 × 64 pixels
Handset: ABS with 83 cm armoured cord
Dimensions: 283 × 127 × 134 mm
Weight: 3 kg
Mounting: Wall-mounted
Operating Environment
Operating Temperature: −40°C to +65°C
Storage Temperature: −40°C to +75°C
Optional Accessories
Acousto-optical alarm, LED beacon, broadcast horn and acoustic hood.
